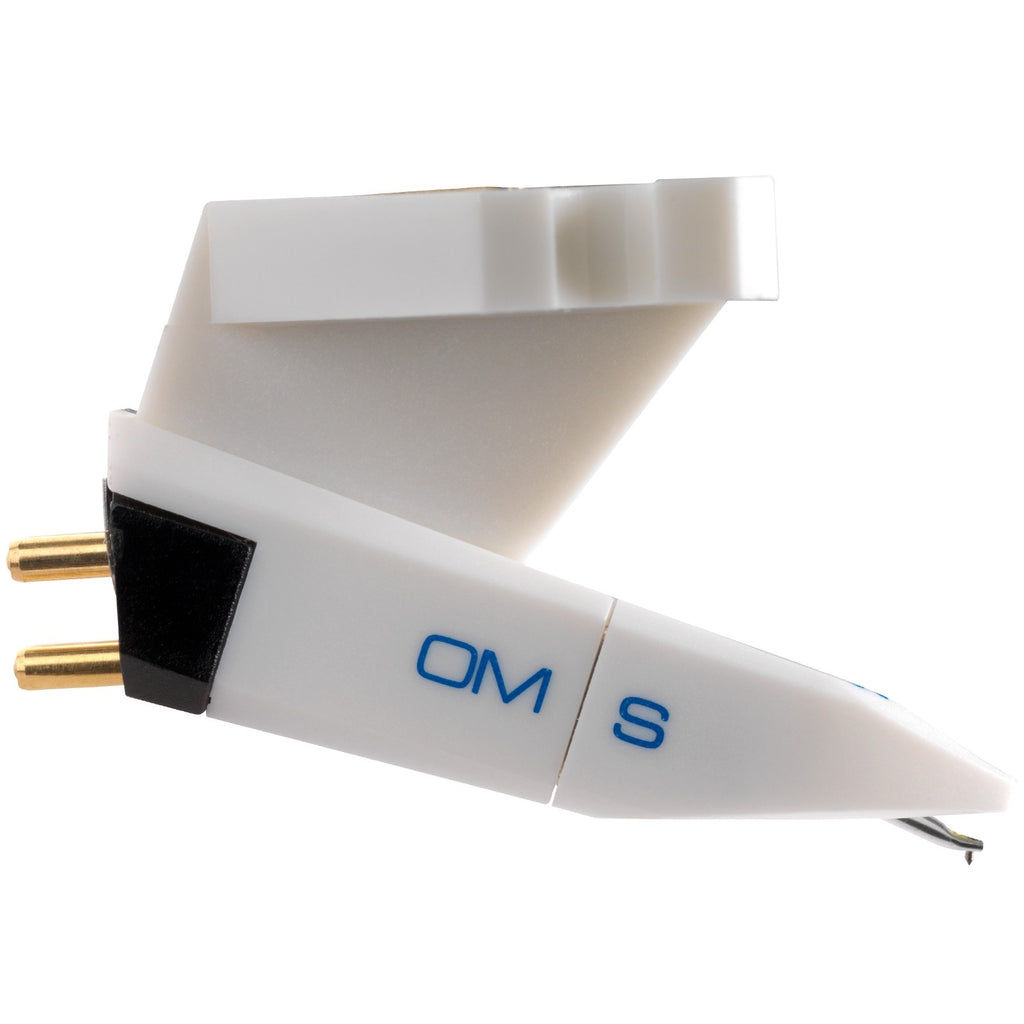

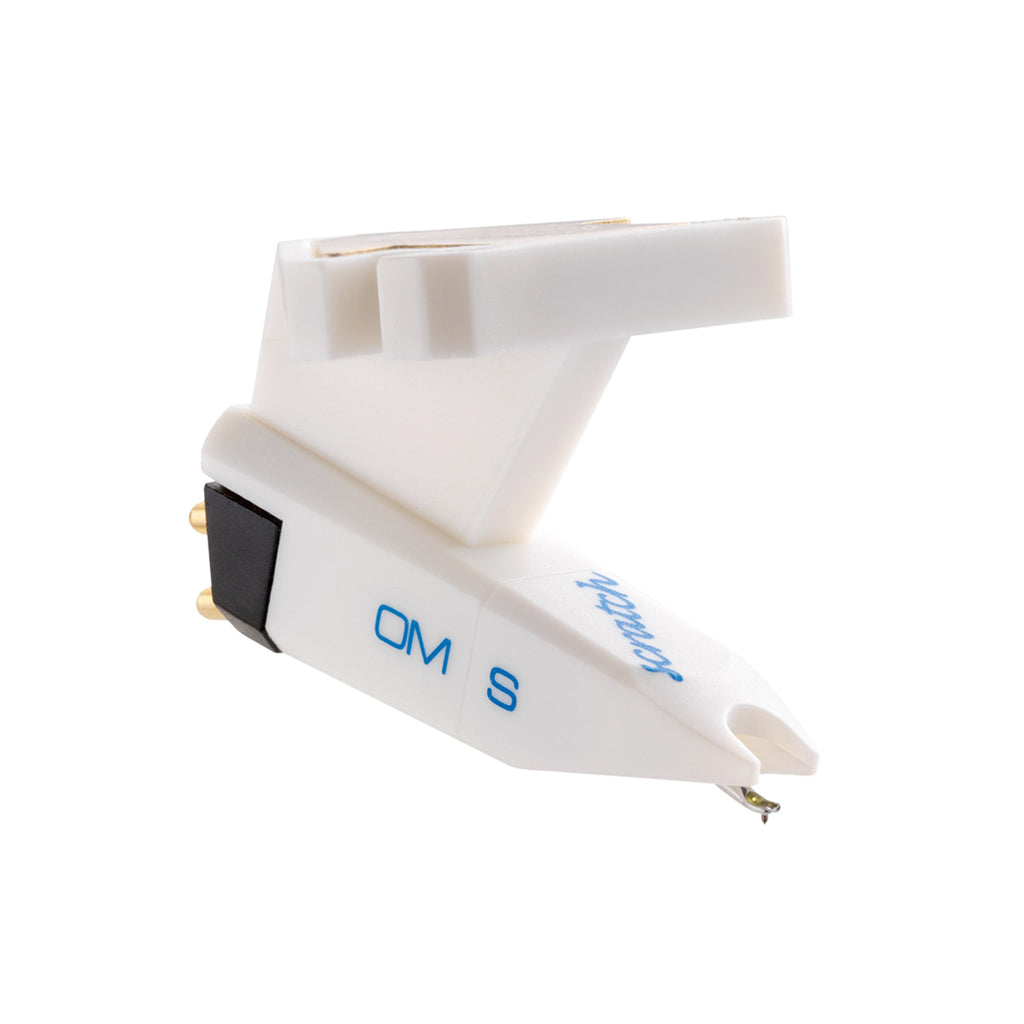

Ortofon OM Scratch White Single Cartridge Mount
$107.99
Ortofon Optimum Match (OM) cartridges match most tonearms perfectly. If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM's. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.
- If your tonearm is an standard tonearm, just leave the weight-plate.
- If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.
An OM cartridge from Ortofon makes it possible to upgrade the performance of an entire music system very easily by upgrading the stylus. We offer a wide range of replacement styli for OM cartridges. With the OM cartridge you instantly hear the improvement: music you've heard many times takes on new dimensions.
High output and maximum scratch performance guaranteed
- Output voltage at 1000Hz, 5cm/sec. - 7 mV
- Channel balance at 1kHz - 1,5 dB
- Channel separation at 1kHz - 25 dB
- Channel separation at 15 kHz - 15 dB
- Frequency range at -3dB - 20-20.000 Hz
- Frequency response - 20-15.000 Hz 3dB/-2dB
- Tracking ability at 315 Hz at recommmended tracking force - 80 μm
- Compliance, dynamic lateral - 6 μm/m N
- Stylus type - Spherical
- Stylus tip radius - R 18 μm
- Tracking force range - 3,0-5,0 g (30-50 mN)
- Tracking force recommended - 4,0 g (40 mN)
- Tracking angle - 20°
- Internal impedance, DC resistance - 750 Ohm
- Internal inductance - 450 mH
- Recommended load resistance - 47 kOhm
- Recommended load capacitance - 200-600 pF
- OM cartridge weight - 5 g
- OM pre-mounted on SH-4 weight incl. screws - 14,5 g
Replacement stylus unit - Scratch White
